INVENTO EL240 - 4 T - Two-post lift
Promo
Product category: 2- post lifts
Index
INVEL240
Currently in stock
Price for: 1 PC.

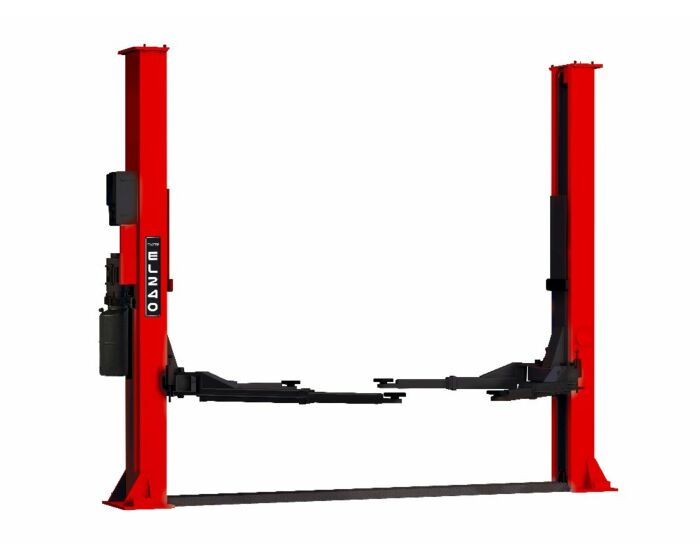

Invento EL240 is an automatic electro-hydraulic lift with a lift capacity of 4 tonnes and a long arm reach.
Details
Technical data
Accessories
Warranty
Safety
- Details
-
Invento EL240 two-post lift is an automatic electrohydraulic lift. The long arm reach and 4-tonne load capacity enable lifting cars, SUVs and smaller vans. Free access to wheels and chassis makes it a versatile tool for workshop work.
Key information about the lift:
- long arm reach
- Automatic lift height locking controlled by electromagnets
- the low sill between the posts protects the steel cable that synchronises the lift
- comes with special 80 mm extension adapters as standard, which make it easier to lift off-road vehicles and delivery vans
EL240 lift is equipped with the necessary safety features required for obtaining CE marking. This guarantees long and safe work in the workshop. Technicians installing the lift have UDT certificates.
The lift is designed for installation in covered, enclosed spaces that are free of obstacles. Operating temperature range from -10°C to 40°C.
Installation requirement:Variant No. 1
- Min. floor strength: C20/25 and min. thickness: 150 mm
- Installation area: 1.5 m from the anchorage
Variant No. 2
- Min. floor strength: C20/25 and min. thickness: 150 mm 250 mm
- Ground slab 4,000 x 2,000 mm
- Technical data
-
Lifting capacity 4 000 kg Lifting height 1 900 mm Minimum height 98 mm Arm length 740 - 1 310 mm Post height 2 844 mm Width between posts 2 810 mm Maximum vehicle width 2 580 mm Total width 3 420 mm Lifting time 60 s Electric power supply 400V/50 Hz Power 2,6 kW - Accessories
- Warranty
-
Warranty: 12 months
- Safety
-
- Responsible Producer:
-
TIPTOPOL SP. Z O.O.
ul. Kostrzyńska 33
62-010 Pobiedziska
Poland
sklep@tiptopol.pl
+48618152200
Electrical risks
The product is powered by electricity and a variety of electrical hazards may occur during operation, which can lead to serious consequences.
Short circuit: This can lead to power outages, damage to equipment, and fire hazards.
Explosions and fires: Improper use of electrical products, such as the use of improper or no safety features, can lead to sparks that start fires. They can cause damage to property and a threat to life and health.
Electric shock: This can lead to personal injury and, in extreme cases, death.
Insulation defects: Poorly insulated wires can lead to an uncontrolled flow of current that can pose a risk to users. This can lead to electric shock, damage to equipment and fires.
Poor grounding: Lack or improper grounding of electrical appliances can cause a buildup of electrical charge. Doing so may lead to electric shock and damage to appliances.
To minimize these risks, it is recommended that the equipment be installed by authorized persons, that electrical installations are regularly inspected, that appropriate safeguards are in place, and that the manufacturer's recommendations for the safe use of the equipment are followed.
Mechanical risks
The product has movable parts that can cause a variety of mechanical hazards during operation, which can lead to serious injuries.
Crushing and crushing: There is a risk that the moving parts of the product will crush or crush the body. It can lead to serious injury or permanent injury.
Cuts and punctures: Cuts, cuts, and even deeper injuries can occur if the user comes into contact with sharp edges or product components.
Impact and Fall Injuries: These can occur when objects fall over and fall from a height or are moved in an improper and dangerous manner. This can cause serious injuries, including broken bones and head injuries.
Trapping: If a body part becomes trapped between moving parts, it can lead to serious injury and loss of limbs.
Vibration: Exposure to prolonged vibration while using the device can damage muscles and nerves. This can lead to vibration syndrome, causing pain and dysfunction in the limbs.
To minimise these risks, it is recommended to use appropriate personal protective equipment, regularly inspect and maintain the equipment, and follow all manufacturer's recommendations for safe use and health and safety (Occupational Health and Safety) regulations.
Files to download
