INVENTO EL S 40 TL 230V - 4 T - Two-post lift
New PromoProduct category: 2- post lifts
Price for: 1 PC.

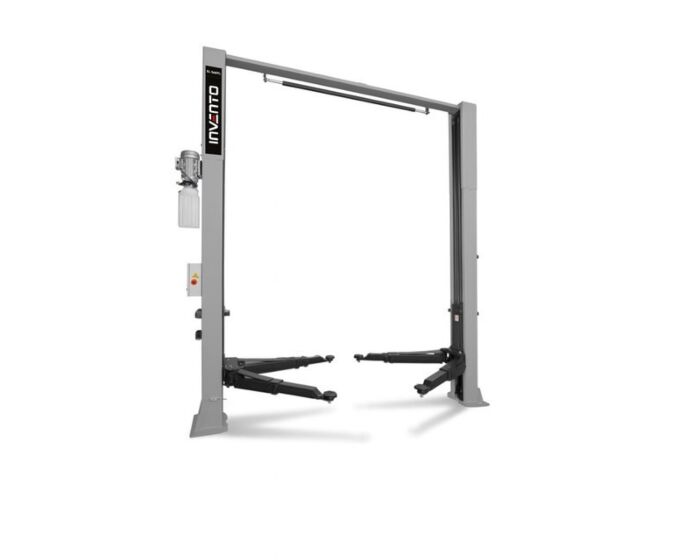

INVENTO EL S40 TL 230V is an FULL automatic electro-hydraulic top link lift with a lift capacity of 4 tonnes and a long arm reach.
- Details
-
INVENTO EL S40 TL 230V two-post lift is an FULL automatic electrohydraulic lift with adjustable top link 3696 / 3798 / 3900 mm. The long arm reach and 4-tonne load capacity enable lifting cars, SUVs and smaller vans. Free access to wheels and chassis makes it a versatile tool for workshop work.
Key information about the lift:
- adjustable top link 3696 / 3798 / 3900 mm
- long arm reach(3-stage front arms and 2-stage rear)
- 230V power supply
- Automatic lift height locking
- free space between columns
- 1-stage adjustable lifting pad
- car door protection on the post
- automatic arm-locking system
EL S40 TL lift is equipped with the necessary safety features required for obtaining CE marking. This guarantees long and safe work in the workshop. Technicians installing the lift have UDT certificates.
The lift is designed for installation in covered, enclosed spaces that are free of obstacles. Operating temperature range from -10°C to 40°C.
Installation requirement:Variant No. 1
- Min. floor strength: C20/25 and min. thickness: 150 mm
- Installation area: 1.5 m from the anchorage
Variant No. 2
- Min. floor strength: C20/25 and min. thickness: 150 mm 250 mm
- Ground slab 4,000 x 2,000 mm
- Technical data
-
Lifting capacity 4 000 kg Lifting height 1 900 mm Minimum height 95 mm Arm length 690 - 1 290 / 820 - 1 320 mm Post height 3696 / 3798 / 3900 mm Width between posts 2 815 mm Total width 3 540 mm Lifting time 50 s Electric power supply 400V/50 Hz Power 2,2 kW - Accessories
- Warranty
-
Warranty: 12 months
- Safety
-
- Responsible Producer:
-
TIPTOPOL SP. Z O.O.
ul. Kostrzyńska 33
62-010 Pobiedziska
Poland
sklep@tiptopol.pl
+48618152200
Electrical risks
The product is powered by electricity and a variety of electrical hazards may occur during operation, which can lead to serious consequences.
Short circuit: This can lead to power outages, damage to equipment, and fire hazards.
Explosions and fires: Improper use of electrical products, such as the use of improper or no safety features, can lead to sparks that start fires. They can cause damage to property and a threat to life and health.
Electric shock: This can lead to personal injury and, in extreme cases, death.
Insulation defects: Poorly insulated wires can lead to an uncontrolled flow of current that can pose a risk to users. This can lead to electric shock, damage to equipment and fires.
Poor grounding: Lack or improper grounding of electrical appliances can cause a buildup of electrical charge. Doing so may lead to electric shock and damage to appliances.
To minimize these risks, it is recommended that the equipment be installed by authorized persons, that electrical installations are regularly inspected, that appropriate safeguards are in place, and that the manufacturer's recommendations for the safe use of the equipment are followed.
Mechanical risks
The product has movable parts that can cause a variety of mechanical hazards during operation, which can lead to serious injuries.
Crushing and crushing: There is a risk that the moving parts of the product will crush or crush the body. It can lead to serious injury or permanent injury.
Cuts and punctures: Cuts, cuts, and even deeper injuries can occur if the user comes into contact with sharp edges or product components.
Impact and Fall Injuries: These can occur when objects fall over and fall from a height or are moved in an improper and dangerous manner. This can cause serious injuries, including broken bones and head injuries.
Trapping: If a body part becomes trapped between moving parts, it can lead to serious injury and loss of limbs.
Vibration: Exposure to prolonged vibration while using the device can damage muscles and nerves. This can lead to vibration syndrome, causing pain and dysfunction in the limbs.
To minimise these risks, it is recommended to use appropriate personal protective equipment, regularly inspect and maintain the equipment, and follow all manufacturer's recommendations for safe use and health and safety (Occupational Health and Safety) regulations.
Ergonomic risks
When working with heavy objects and in situations requiring prolonged use of force, a variety of ergonomic hazards can occur, which can lead to serious health consequences.
Muscle and joint overload: Muscle and joint overload can occur when lifting, carrying, or handling heavy objects. It can lead to pain, muscle tears and strains, joint injuries, and even structural damage to the body.
Poor posture at work: Working in the wrong posture, such as a hunched posture or twisted posture, can lead to tension in the muscles and spine. This can cause chronic back, neck and shoulder pain and back problems.
Prolonged use of force: Prolonged performance of activities that require a lot of physical effort can lead to fatigue and overloading the body. This can lead to exhaustion, muscle injuries and reduced work efficiency.
Prolonged vibration: Prolonged exposure to vibration, especially with the use of power tools, can lead to nerve and muscle damage. This can cause vibration syndrome, manifested by pain, numbness and loss of sensation in the limbs.
Monotony and repetitive movements: Performing the same movements for a long time can lead to micro-injuries and overloads. This can lead to injuries such as carpal tunnel syndrome, tendonitis and other musculoskeletal conditions.
To minimize ergonomic risks, it is recommended to use appropriate lifting techniques, ergonomic tools and workstations, and regular breaks and stretching exercises.
