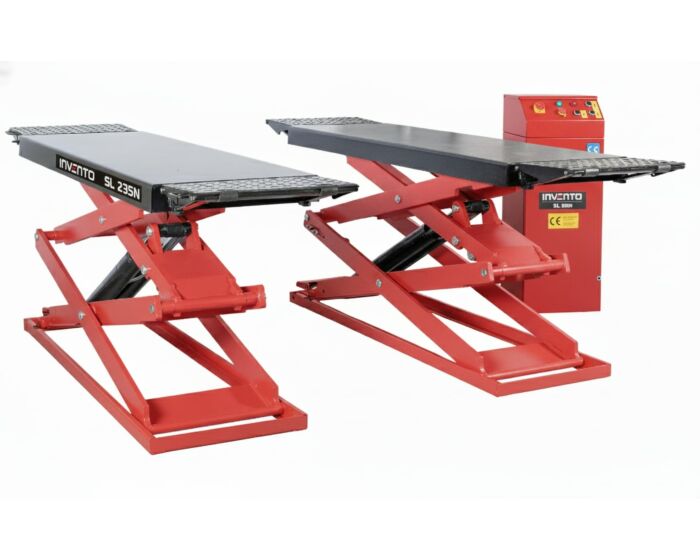

INVENTO SL 235N 3,5 T - Scissor lift
PromoProduct category: Scissor lifts
Price for: 1 PC.
INVENTO SL 235N is onground-mounted lift designed for underbody lifting of vehicles weighing up to 3.5 tons. Combined with platforms measuring 2.077 m in length, it allows servicing of cars, SUVs, and vans.
- Details
-
INVENTO SL 235N is an above-floor lift designed for underbody lifting of vehicles weighing up to 3.5 tons. The SL 232 S is equipped with 2.077 m long platforms with adjustment that facilitates daily work. It enables lifting vehicles to a height of 1.9 m.
Key information about the lift:
-
Working position secured by a double piston system (no mechanical safety locks)
-
Only 105 mm height when fully lowered
-
Synchronized platform movement
-
800 mm of free space between the platforms
-
Adjustable platform length: 1,547 – 2,077 mm
The SL 235N lift is equipped with all necessary safety features required by CE documentation. This ensures long and safe operation in the workshop.
The lift is designed for installation in enclosed indoor spaces free of obstacles. Operating temperature range: –5°C to 40°C.
Floor preparation:
The lift must be installed on a C20/25 concrete floor with a minimum thickness of 15 cm.
-
- Technical data
-
Parameter Value Lifting capacity 3,500 kg Lifting height 1,900 mm Minimum height 105 mm Platform length 1,547 mm – 2,077 mm Platform width 650 mm Distance between scissors 800 mm Total width 2,100 mm Lifting time 45 – 50 s Power supply 400 V / 50 Hz Power 3 kW - Accessories
- Warranty
-
Warranty: 12 months
- Safety
-
- Responsible Producer:
-
TIPTOPOL SP. Z O.O.
ul. Kostrzyńska 33
62-010 Pobiedziska
Poland
sklep@tiptopol.pl
+48618152200
Electrical risks
The product is powered by electricity and a variety of electrical hazards may occur during operation, which can lead to serious consequences.
Short circuit: This can lead to power outages, damage to equipment, and fire hazards.
Explosions and fires: Improper use of electrical products, such as the use of improper or no safety features, can lead to sparks that start fires. They can cause damage to property and a threat to life and health.
Electric shock: This can lead to personal injury and, in extreme cases, death.
Insulation defects: Poorly insulated wires can lead to an uncontrolled flow of current that can pose a risk to users. This can lead to electric shock, damage to equipment and fires.
Poor grounding: Lack or improper grounding of electrical appliances can cause a buildup of electrical charge. Doing so may lead to electric shock and damage to appliances.
To minimize these risks, it is recommended that the equipment be installed by authorized persons, that electrical installations are regularly inspected, that appropriate safeguards are in place, and that the manufacturer's recommendations for the safe use of the equipment are followed.
Mechanical risks
The product has movable parts that can cause a variety of mechanical hazards during operation, which can lead to serious injuries.
Crushing and crushing: There is a risk that the moving parts of the product will crush or crush the body. It can lead to serious injury or permanent injury.
Cuts and punctures: Cuts, cuts, and even deeper injuries can occur if the user comes into contact with sharp edges or product components.
Impact and Fall Injuries: These can occur when objects fall over and fall from a height or are moved in an improper and dangerous manner. This can cause serious injuries, including broken bones and head injuries.
Trapping: If a body part becomes trapped between moving parts, it can lead to serious injury and loss of limbs.
Vibration: Exposure to prolonged vibration while using the device can damage muscles and nerves. This can lead to vibration syndrome, causing pain and dysfunction in the limbs.
To minimise these risks, it is recommended to use appropriate personal protective equipment, regularly inspect and maintain the equipment, and follow all manufacturer's recommendations for safe use and health and safety (Occupational Health and Safety) regulations.
Ergonomic risks
When working with heavy objects and in situations requiring prolonged use of force, a variety of ergonomic hazards can occur, which can lead to serious health consequences.
Muscle and joint overload: Muscle and joint overload can occur when lifting, carrying, or handling heavy objects. It can lead to pain, muscle tears and strains, joint injuries, and even structural damage to the body.
Poor posture at work: Working in the wrong posture, such as a hunched posture or twisted posture, can lead to tension in the muscles and spine. This can cause chronic back, neck and shoulder pain and back problems.
Prolonged use of force: Prolonged performance of activities that require a lot of physical effort can lead to fatigue and overloading the body. This can lead to exhaustion, muscle injuries and reduced work efficiency.
Prolonged vibration: Prolonged exposure to vibration, especially with the use of power tools, can lead to nerve and muscle damage. This can cause vibration syndrome, manifested by pain, numbness and loss of sensation in the limbs.
Monotony and repetitive movements: Performing the same movements for a long time can lead to micro-injuries and overloads. This can lead to injuries such as carpal tunnel syndrome, tendonitis and other musculoskeletal conditions.
To minimize ergonomic risks, it is recommended to use appropriate lifting techniques, ergonomic tools and workstations, and regular breaks and stretching exercises.
