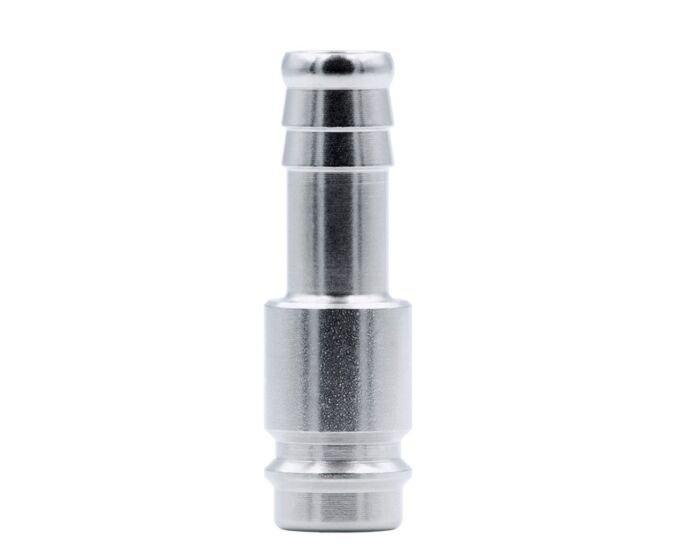

Pneumatic quick coupling plug DN10 type 227SF, 13 mm hose tail, PN 35 bar

What it is and where it fits:

A DN10 quick coupling plug from the 227 series (type 227SF) with a hose tail for a 13 mm inner diameter hose. You install it on a flexible hose so the hose can be connected and disconnected quickly to a matching socket at the workstation.

Why the hose tail for 13 mm inner diameter matters:

A common workshop issue is time lost on threaded joints and leaks after repeated disassembly. A hose-tail termination simplifies hose service: hose replacement is faster and the hose end stays consistent, helping reduce downtime and the risk of air leakage at frequently handled connections.

Why DN10 and high flow matter in practice:

The key is not only “does it connect”, but “does the tool get stable air supply”. The DN10 series has a high reference flow (3200 l/min at 6 bar inlet pressure, 0.5 bar pressure drop), which helps reduce pressure loss across the coupling. This is especially relevant for higher-demand tools and longer hose runs where losses are more noticeable as reduced tool power.

What maximum pressure and temperature range solve:

Maximum working pressure up to 35 bar provides operating margin for industrial compressed-air systems and different regulator settings. The working temperature range from -20°C to +100°C (NBR) supports reliable performance in unheated areas (winter) and warmer environments, helping the connection remain stable under typical workshop conditions.

Compatibility that saves time on-site:

The series is described as compatible with Rectus 27, Rectus 1700/1727 and CEJN 410 profiles, which can help integrate into existing systems—provided the mating component uses the same profile.

Durability for frequent coupling cycles:

A hardened, nickel-plated steel plug profile is relevant when couplings are connected/disconnected many times per day and exposed to impacts and workshop dirt.

How to use (practical):

1. Fit a hose with 13 mm inner diameter on the hose tail and secure it per your workshop standard (clamp/crimp).

2. Leak-test the hose-to-tail connection.

3. Connect to a socket of the same profile and test under load (tool performance).

4. Keep the coupling clean to maintain sealing performance.

FAQ:

• Does it fit a hose with a 13 mm inner diameter? Yes, this version has a hose tail for a hose with 13 mm inner diameter.

• Is it suitable for heavy workshop use? The series is described for high-demand compressed-air applications and has high reference flow.

• How to reduce tool power drop at the coupling? Ensure profile compatibility, keep the coupling clean, and use a high-flow DN10 series to reduce pressure loss at the connection.

• Operating limits? Maximum working pressure up to 35 bar and working temperature range from -20°C to +100°C (NBR).
