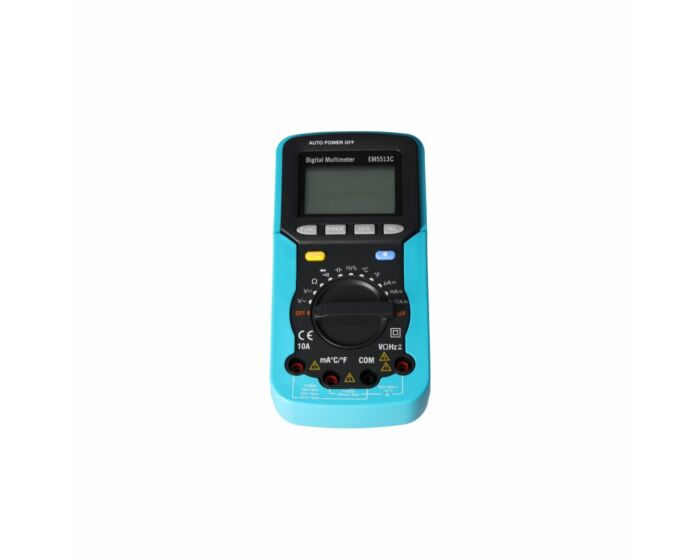

Multimeter AC/DC Voltmeter UNIVERSAL
Product category: Specialty tools
Index
W-WT2037
Currently in stock
Price for: 1 PC.
Multifunction meter of compact size designed not only for professionals, but thanks to its simple operation also for beginners do-it-yourselfers.
Details
Accessories
Warranty
Safety
- Details
-
Multifunction meter of compact size designed not only for professionals, but thanks to its simple operation also for novice do-it-yourselfers.
The small size will allow you to have the product almost always with you, and the large backlit display will allow you to check the parameters in different situations.
Specifications:
- 3.3/4" LCD display with blue backlight (display up to 3999)
- Overload indicator
- Negative polarity indicator
- Sampling rate 2 - 3 times per second
- Operating Temperature 0°C-40°C < 75% Humidity
- AC voltage: 4-40-400-600V
- DC voltage: 0.4-4-40-400-600V
- Resistance: 400-4k - 40k-400k 4m 40MOhm
- Frequency: 10-100 Hz 1 kHz-10k - 100k-200kHz
- Volume: 40nF-400nF-4µF-40µF-100µF
- Temperature: -20 ℃ ~ 400 ℃
- Diode test by measurement with audible signal
- Relative humidity: 5% ~ 95%.
- Dimensions: 165x83x47mm
- Supplied with 9V battery
- Accessories
- Warranty
-
Warranty: 12 months
- Safety
-
- Responsible Producer:
-
ALL4CAR BV
NIEUWSTADTEWEG 10C
6136 SITTARD
Netherlands
info@weber-tools.nl
+31(0)65122117
Electrical risks
The product is powered by electricity and a variety of electrical hazards may occur during operation, which can lead to serious consequences.
Short circuit: This can lead to power outages, damage to equipment, and fire hazards.
Explosions and fires: Improper use of electrical products, such as the use of improper or no safety features, can lead to sparks that start fires. They can cause damage to property and a threat to life and health.
Electric shock: This can lead to personal injury and, in extreme cases, death.
Insulation defects: Poorly insulated wires can lead to an uncontrolled flow of current that can pose a risk to users. This can lead to electric shock, damage to equipment and fires.
Poor grounding: Lack or improper grounding of electrical appliances can cause a buildup of electrical charge. Doing so may lead to electric shock and damage to appliances.
To minimize these risks, it is recommended that the equipment be installed by authorized persons, that electrical installations are regularly inspected, that appropriate safeguards are in place, and that the manufacturer's recommendations for the safe use of the equipment are followed.
