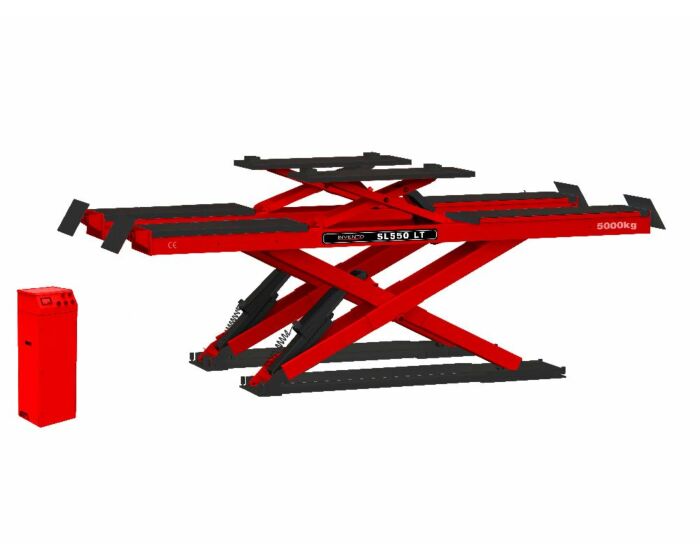

INVENTO SL 550 LT - Diagnostic scissor lift 5000mm
Product category: Workshop equipment
Index
INVSL550LT
Currently in stock
Price for: 1 PC.
Invento SL 230 LNI is a lift with a lifting capacity of 5 tonnes used to perform geometry measurements and features special recessed places for turntables and expansion plates.
Details
Technical data
Warranty
Safety
- Details
-
The Invento SL 550 LT is a 5 tonne capacity lift used to perform geometry measurements. It has special recesses for turntables and expanding plates built into the 5,000 mm long ramps. In addition, a sill lifting jack is built into the ramps.
Key information about the lift:
- the built-in sill lifting jack offers a lifting height of 430 mm
- can be installed both on the floor and in the floor
- mechanical lift protection ensures perfect levelling of the platforms during geometry measurement
- possible vehicle elevation of up to 2,160 mm
Invento SL 550 LT lift is equipped with the necessary safety features required for obtaining CE marking. This guarantees long and safe work in the workshop. The technicians responsible for installing the lift are certified by the Office of Technical Inspection (UDT).
It is designed for installation in covered, enclosed areas that are free of any obstacles. Operating temperature range: from -10°C to 40°C.
- Technical data
-
Lifting capacity 5,000 kg Lifting capacity of sill lifting jack 4,000 kg Lifting height (on the sill) 2 160(430) mm Minimum height 290 mm Platform length 5,000 mm Length of sill lifting jack platforms: 1500 - 2000 mm Platform width 608 mm Scissors spacing 997 mm Lifting time 70 s Electric power supply 400V/50Hz Power 3.5 kW - Warranty
-
Warranty: 12 months
- Safety
-
- Responsible Producer:
-
TIPTOPOL SP. Z O.O.
ul. Kostrzyńska 33
62-010 Pobiedziska
Poland
sklep@tiptopol.pl
+48618152200
Electrical risks
The product is powered by electricity and a variety of electrical hazards may occur during operation, which can lead to serious consequences.
Short circuit: This can lead to power outages, damage to equipment, and fire hazards.
Explosions and fires: Improper use of electrical products, such as the use of improper or no safety features, can lead to sparks that start fires. They can cause damage to property and a threat to life and health.
Electric shock: This can lead to personal injury and, in extreme cases, death.
Insulation defects: Poorly insulated wires can lead to an uncontrolled flow of current that can pose a risk to users. This can lead to electric shock, damage to equipment and fires.
Poor grounding: Lack or improper grounding of electrical appliances can cause a buildup of electrical charge. Doing so may lead to electric shock and damage to appliances.
To minimize these risks, it is recommended that the equipment be installed by authorized persons, that electrical installations are regularly inspected, that appropriate safeguards are in place, and that the manufacturer's recommendations for the safe use of the equipment are followed.
Mechanical risks
The product has movable parts that can cause a variety of mechanical hazards during operation, which can lead to serious injuries.
Crushing and crushing: There is a risk that the moving parts of the product will crush or crush the body. It can lead to serious injury or permanent injury.
Cuts and punctures: Cuts, cuts, and even deeper injuries can occur if the user comes into contact with sharp edges or product components.
Impact and Fall Injuries: These can occur when objects fall over and fall from a height or are moved in an improper and dangerous manner. This can cause serious injuries, including broken bones and head injuries.
Trapping: If a body part becomes trapped between moving parts, it can lead to serious injury and loss of limbs.
Vibration: Exposure to prolonged vibration while using the device can damage muscles and nerves. This can lead to vibration syndrome, causing pain and dysfunction in the limbs.
To minimise these risks, it is recommended to use appropriate personal protective equipment, regularly inspect and maintain the equipment, and follow all manufacturer's recommendations for safe use and health and safety (Occupational Health and Safety) regulations.
