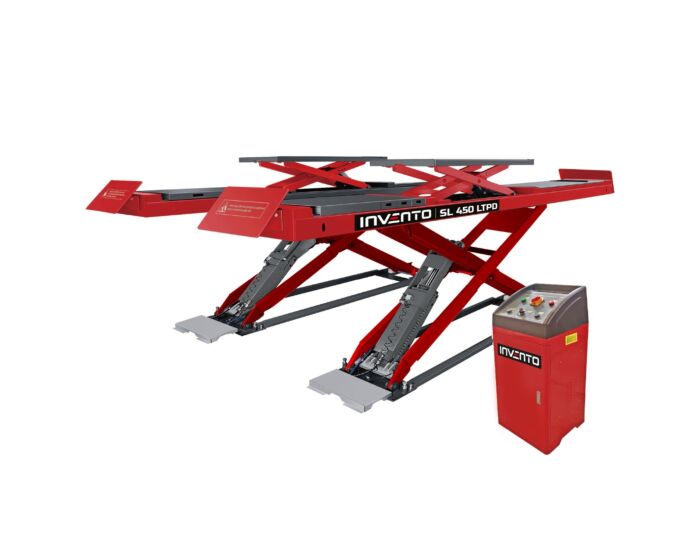

INVENTO SL 450 LTPD 4.5T - Diagnostic scissor lift with play detector
Product category: Workshop equipment
Index
INVSL450LTPD
Currently in stock
Price for: 1 PC.
Invento SL450 LTPD is a lift with a lifting capacity of 4.5 tons designed for wheel alignment with built-in 8-direction play detectors.
Details
Technical data
Warranty
Safety
- Details
-
Invento SL450 LTPD is a lift with a lifting capacity of 4.5 tons, intended for wheel alignment with built-in 8-direction play detectors. It features special recesses for turntables and expansion plates built into the 4 800 mm long runways.
Additionally, a subframe lift with a lifting capacity of 3.5 tons is built into the runways, allowing the vehicle to be lifted to a height of 420 mm
Key information about the lift:
- Built-in 8-direction play detector
- Subframe lift built into the runways with a lifting capacity of 3.5 tons, allowing the vehicle to be lifted to a height of 420 mm
- Platform length of 4.8 m
- Can be installed both on the floor and in the floor
- Mechanical lift lock ensures perfect leveling of the platforms during wheel alignment
- Ability to lift the vehicle to a height of 1 900 mm
- the lift does not have rails for mounting an axial lift
- to mount the lift on the floor, it is necessary to purchase access ramps (included with cable covers)
The Invento SL450 LTPD lift is equipped with the necessary safety features required by CE documentation. This guarantees long and safe operation in the workshop.
The lift is designed for installation in covered, enclosed spaces free of obstacles. Operating temperature range from -10°C to 40°C.
- Technical data
-
Lifting Capacity 4 500 kg Under-lift Capacity 3 500 kg Lifting Height (under-lift) 1 900 (420) mm Minimum Height 290 mm Platform Length 4 800 mm Under-lift Platform Length 1 480 - 1 880 mm Platform Width 600 mm Distance Between Scissors 900 mm Lifting Time <90 s Electric Supply 400V/50 Hz Power 3.0 kW - Warranty
-
Warranty: 12 months
- Safety
-
- Responsible Producer:
-
TIPTOPOL SP. Z O.O.
ul. Kostrzyńska 33
62-010 Pobiedziska
Poland
sklep@tiptopol.pl
+48618152200
Electrical risks
The product is powered by electricity and a variety of electrical hazards may occur during operation, which can lead to serious consequences.
Short circuit: This can lead to power outages, damage to equipment, and fire hazards.
Explosions and fires: Improper use of electrical products, such as the use of improper or no safety features, can lead to sparks that start fires. They can cause damage to property and a threat to life and health.
Electric shock: This can lead to personal injury and, in extreme cases, death.
Insulation defects: Poorly insulated wires can lead to an uncontrolled flow of current that can pose a risk to users. This can lead to electric shock, damage to equipment and fires.
Poor grounding: Lack or improper grounding of electrical appliances can cause a buildup of electrical charge. Doing so may lead to electric shock and damage to appliances.
To minimize these risks, it is recommended that the equipment be installed by authorized persons, that electrical installations are regularly inspected, that appropriate safeguards are in place, and that the manufacturer's recommendations for the safe use of the equipment are followed.
Mechanical risks
The product has movable parts that can cause a variety of mechanical hazards during operation, which can lead to serious injuries.
Crushing and crushing: There is a risk that the moving parts of the product will crush or crush the body. It can lead to serious injury or permanent injury.
Cuts and punctures: Cuts, cuts, and even deeper injuries can occur if the user comes into contact with sharp edges or product components.
Impact and Fall Injuries: These can occur when objects fall over and fall from a height or are moved in an improper and dangerous manner. This can cause serious injuries, including broken bones and head injuries.
Trapping: If a body part becomes trapped between moving parts, it can lead to serious injury and loss of limbs.
Vibration: Exposure to prolonged vibration while using the device can damage muscles and nerves. This can lead to vibration syndrome, causing pain and dysfunction in the limbs.
To minimise these risks, it is recommended to use appropriate personal protective equipment, regularly inspect and maintain the equipment, and follow all manufacturer's recommendations for safe use and health and safety (Occupational Health and Safety) regulations.
